Compact Plate Heat Exchanger: High-Efficiency Thermal Transfer Solution for Industrial Applications

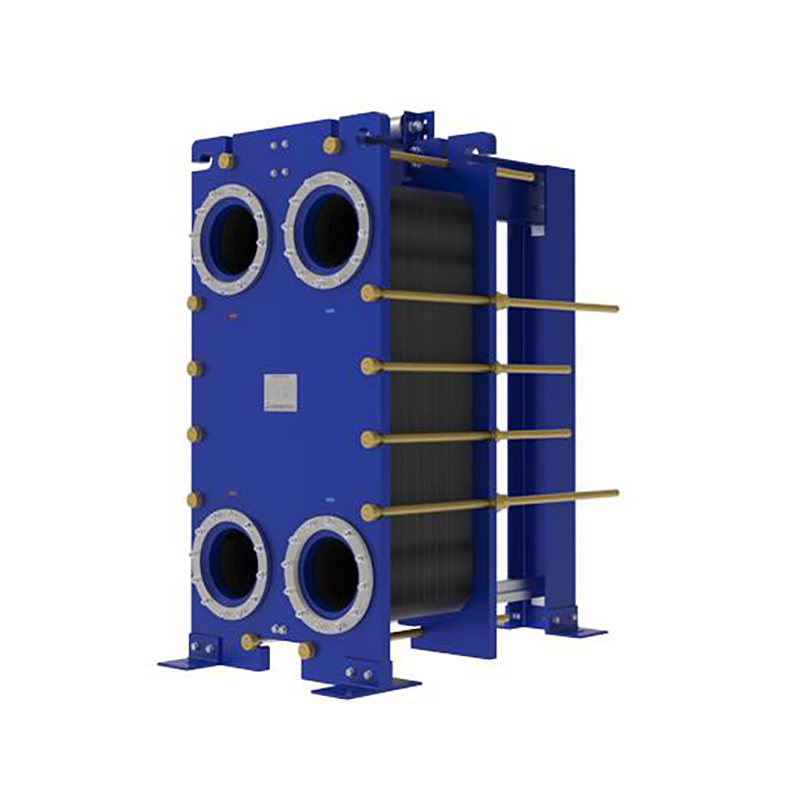

The principle of a compact plate heat exchanger revolves around its innovative design, which maximizes heat transfer efficiency while minimizing space requirements. These exchangers consist of multiple thin, corrugated metal plates stacked together, creating alternating channels for hot and cold fluids. The large surface area-to-volume ratio enables rapid heat exchange, with thermal efficiency often exceeding 90%. Unlike traditional shell-and-tube models, the compact design reduces heat loss and energy consumption by up to 40%, as validated by ASHRAE research. The plates are typically made of stainless steel, titanium, or other corrosion-resistant materials, ensuring durability in harsh environments. Gasket or brazed plate variants cater to different pressure and temperature ranges (up to 25 bar and 200°C for gasketed models, per Alfa Laval specifications). Their modularity allows easy capacity expansion by adding or removing plates, making them ideal for evolving industrial needs.

Why Use Compact Plate Heat Exchangers?

Industries adopt compact plate heat exchangers for their unmatched operational and economic advantages. According to a 2023 MarketsandMarkets report, the global plate heat exchanger market will grow at 6.2% CAGR, driven by their 50-60% space savings compared to conventional units. They reduce energy costs by 30-50% in HVAC applications (EPA data) and cut maintenance expenses due to their accessible, tool-free disassembly. Food/beverage processors favor them for meeting 3-A sanitary standards, while chemical plants leverage their ability to handle aggressive media with pH ranges from 0-14 (based on Tranter performance charts). Their minimal fouling risk and CIP (Clean-in-Place) compatibility slash downtime by 70% versus shell-and-tube units. With a typical payback period under 2 years (European Heat Pump Association study), these exchangers are pivotal for sustainability goals, reducing CO₂ emissions by 15-25% in district heating systems.
