What is a Corrugated Plate Heat Exchanger

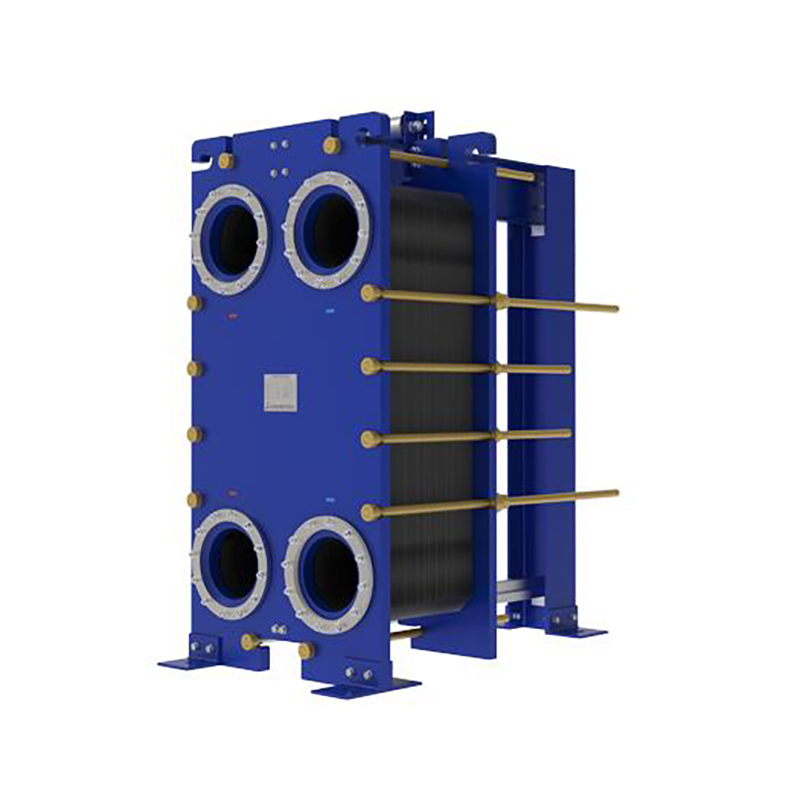

A corrugated plate heat exchanger (PHE) is a highly efficient thermal transfer device designed to facilitate heat exchange between two fluids without mixing them. It consists of multiple thin, corrugated metal plates stacked together, forming channels through which the hot and cold fluids flow alternately. The corrugations on the plates are not merely structural; they serve to create turbulence in the fluid flow, which significantly enhances heat transfer efficiency compared to traditional shell-and-tube heat exchangers. These units are typically assembled in a frame that holds the plates tightly sealed with gaskets, ensuring that the fluids remain separate while maximizing the surface area for heat exchange. The design allows for easy disassembly for cleaning, maintenance, or capacity adjustment by adding or removing plates. Corrugated PHEs are widely used across industries such as HVAC, chemical processing, food and beverage, and power generation due to their compact footprint and superior performance. The materials used for plates, such as stainless steel, titanium, or specialized alloys, are selected based on the fluids' properties, including temperature, pressure, and corrosiveness, ensuring durability and reliability in diverse operational environments. This adaptability makes them a preferred choice for applications requiring precise temperature control and energy efficiency.
