‌Efficiency of a Printed Circuit Heat Exchanger

Printed Circuit Heat Exchangers are ultra-compact, diffusion-bonded plate heat exchangers engineered for extreme conditions. They use etched microchannel plates stacked into a monolithic block, enabling very high heat-transfer coefficients and nearly counterflow operation. These design features boast exceptional thermal effectiveness of 95–98% under ideal conditions. This means that a high pressure PHE can transfer almost all of the available heat between the hot and cold streams, leaving only a very small “approach” temperature difference.

Schematic of a printed circuit heat exchanger (PCHE). Thin metal plates with etched microchannels (the “plate pack”) are diffusion-bonded into a solid block between hot- and cold-side shells.

The high efficiency of PCHEs stems from their extremely large surface-area-to-volume ratio and engineered flow paths. Each plate contains complex, winding microchannels (often only hundreds of micrometers wide) that force the fluids into long, turbulent paths. This turbulence boosts the convective heat transfer coefficient (often 3000–7000 W/m²·K) far beyond what is possible in typical shell-and-tube units. Meanwhile, arranging the flows in a true counter-current configuration maximizes the temperature difference along the exchanger and further drives efficiency. Because the plates are diffusion-bonded into one block, there are no gasket leaks or brazed joints to add thermal resistance – the entire plate stack acts as one continuous metal conductor. As a result, nearly all the thermal energy from the hot fluid can be transferred to the cold fluid.

By comparison, conventional shell-and-tube or even gasketed exchangers cannot match this performance. Typical plate-and-frame heat exchangers already achieve much closer temperature approaches than shell-and-tube phes, often within a few degrees, because of their corrugated plates. Gasketed plate exchangers can be up to five times more efficient than shell-and-tube designs, with approach temperatures as close as 1°F. PCHEs push this even further: their fine-channel geometry routinely yields temperature approaches under 5°C (effectiveness on the order of 98%). For applications demanding the highest possible efficiency, PCHEs set the benchmark.

How PCHEs Achieve High Efficiency

Several key design factors enable PCHEs to reach such high effectiveness:

· Dense Microchannel Network:

Each diffusion-bonded plate contains a labyrinth of etched channels on both sides. These microchannels dramatically increase the heat transfer area per unit volume (often hundreds of square meters per cubic meter). More surface area means more space for heat to flow between the fluids.

· High Turbulence:

The channel patterns are usually corrugated or wavy, intentionally inducing turbulence even at moderate flow rates. Turbulence thins the thermal boundary layers, raising the convective heat transfer coefficient. In practical terms, this means the fluid doesn’t have to heat the wall slowly – heat is exchanged very rapidly and efficiently.

· True Counterflow Configuration:

Engineers custom-arrange the channel geometry so that the hot and cold streams are mostly counter-current. Counterflow maximizes the driving temperature difference along the exchanger, which is the fundamental basis for high thermal effectiveness.

· All-Metal Core:

Because the plates are diffusion-bonded, the PCHE core is a single solid metal block with no internal seals or gaskets. This eliminates thermal contact resistance at joints and prevents any leakage that would bypass heat transfer. It also allows the core to withstand extremely high pressures (often 600–1000 bar) and temperatures (often >800°C).

· Low Fluid Inventory:

The tiny channel volumes mean each fluid side holds only a small amount of fluid. Low inventory reduces thermal lag and allows for quicker response and higher effectiveness.

Thanks to these features, PCHEs typically achieve thermal effectiveness in the mid-90s to upper-90s percentile. In practical terms, if a PCHE is specified to cool a fluid from 200°C to 50°C, the cold stream might leave at nearly 195–198°C, meaning almost all the heat has been recovered. This performance far surpasses typical shell-and-tube units, and often slightly edges out even the best conventional plate exchangers. The difference matters most when very small temperature approaches are required – for example, LNG precooling or reactor heat recovery – where every degree of temperature difference is valuable.

Comparison with Other Heat Exchangers

In a generalized performance comparison table, all high-performance plate-type exchangers (gasketed, welded, printed-circuit) are marked as “Excellent” for thermal efficiency. However, PCHEs achieve the highest nominal efficiency due to their optimized microchannels. If maximum heat recovery and minimal approach temperature are the goal (especially under extreme pressure/temperature conditions), a PCHE will usually outperform other designs.

For more detailed comparisons, please refer to our special report:

> https://www.china-heattransfer.com/welded-vs-gasketed-vs-printed-circuit-plate-heat-exchangers/

Industry Applications and FAQs

Why choose a PCHE?  PCHEs offer unrivaled compactness and ruggedness. They can be specified for extreme conditions – pressures up to ~1000 bar and temperatures up to ~850°C – where conventional exchangers cannot operate.

Indeed, PCHEs were first adopted in the nuclear power and aerospace sectors for this reason. For example, in an LNG plant, a PCHE might be used in the cryogenic section to cool and condense natural gas with minimal temperature loss.

Typical fields include:

· Oil & Gas (Petrochemical, LNG):

Compact LNG liquefiers and gas processing units use PCHEs for precooling, vaporizers, and waste-heat recovery. The high efficiency lowers refrigeration duty. Similarly, downstream gas treatment and chemical processes benefit from tight temperature control. Plate exchangers in general are already widely applied in the oil and gas industry due to their high efficiency, compact size, corrosion resistance, and ease of maintenance, and PCHEs represent the next step when higher duty is needed.

· Power Generation (Nuclear, Supercritical CO₂):

In advanced reactors and supercritical CO₂ cycles, PCHEs serve as primary heat exchangers or recuperators. Their leak-tight all-metal construction suits aggressive coolants, and their efficiency improves overall cycle performance.

· Renewables (Hydrogen, Carbon Capture):

As noted by industry sources, PCHEs are valuable in hydrogen refueling stations (for precooling hydrogen gas) and in carbon capture plants (for cooling dense CO₂ or solvent streams). Their ability to handle cryogenics and high pressures is especially useful here.

· Metallurgy and Chemicals:

Steel plants and chemical factories often require high-temperature heat recovery (for example, from off-gases). While less common than in power/O&G, PCHEs can be applied in these sectors for heat recovery loops, owing to their robustness.

· Aerospace and Defense:

Specialized aerospace and cryogenic applications use PCHEs for thermal control in space vehicles and high-altitude aircraft, where weight and reliability are critical.

Engineers often ask whether PCHEs are worth the cost for efficiency. PCHEs are indeed more expensive to manufacture (precision etching and diffusion bonding). However, their return on investment often comes from performance: reducing the required heat-transfer area, saving floor space (they can be 80–90% smaller than shell-and-tube), and minimizing pumping power.

In the event of a blockage, several cleaning strategies may be required—ranging from high-pressure water jetting to more complex and costly chemical cleaning processes. These maintenance tasks can be particularly challenging in tightly confined or poorly accessible setups, making it essential to design systems with appropriate cleaning ports and service access points. As part of sound operational planning, provisions for these cleaning methods should be integrated into every PCHE system. Additionally, issues related to galvanic corrosion between the heat exchanger and connected piping materials have occasionally arisen, highlighting the need for insulation kits or coated spool sections during installation to ensure material compatibility on-site.

About SHPHE

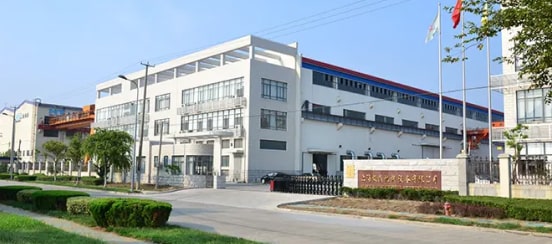

Shanghai Heat Transfer Equipment Co., Ltd. specializes in the design, manufacturing, installation, and service of plate heat exchangers and complete heat transfer systems.
